GE WH43X10027 Washer Pulsator Assembly

GE
Regular price

$236.17

Shipping calculated at checkout.
  • Hard to find GE part in stock!
  • One Year Replacement Warranty
Stock Status
Out of Stock

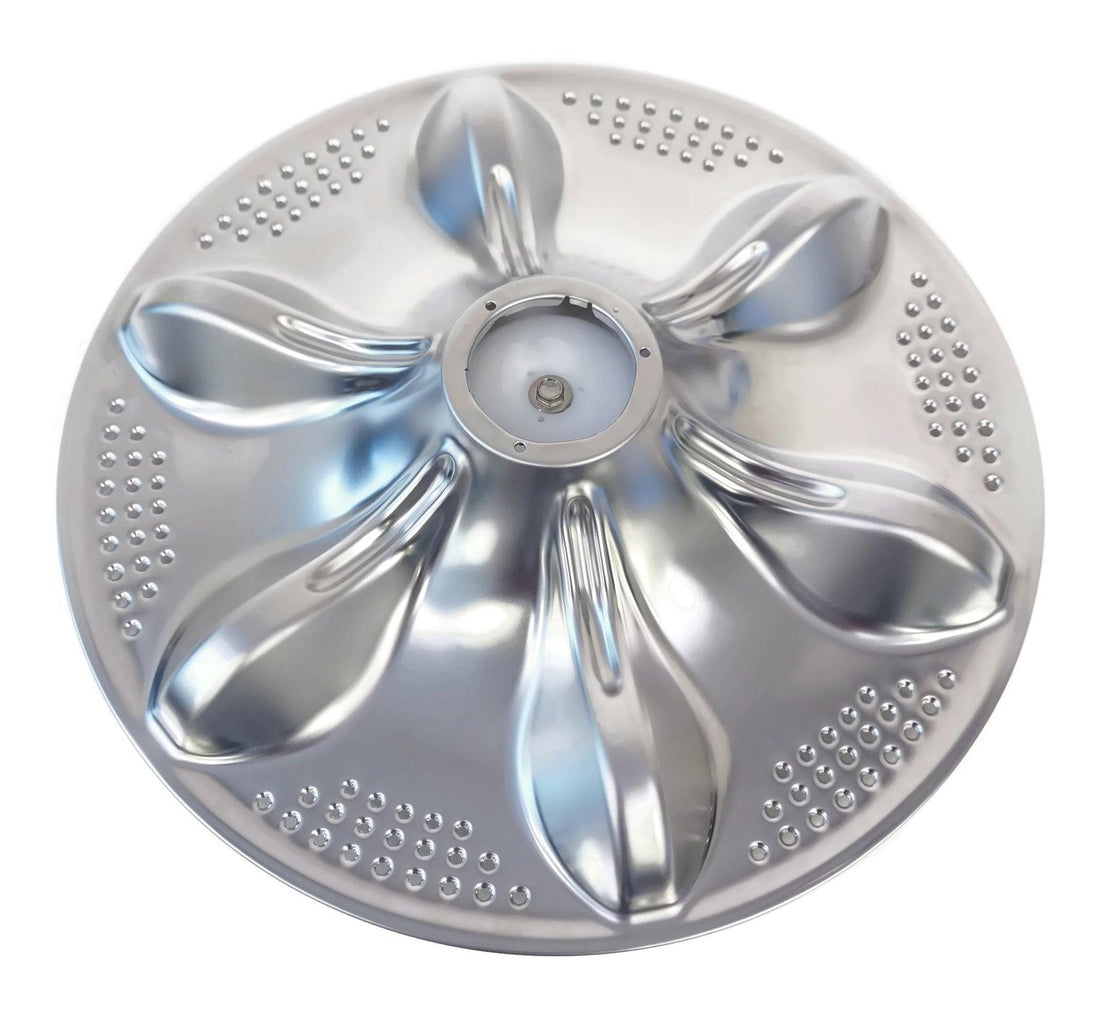

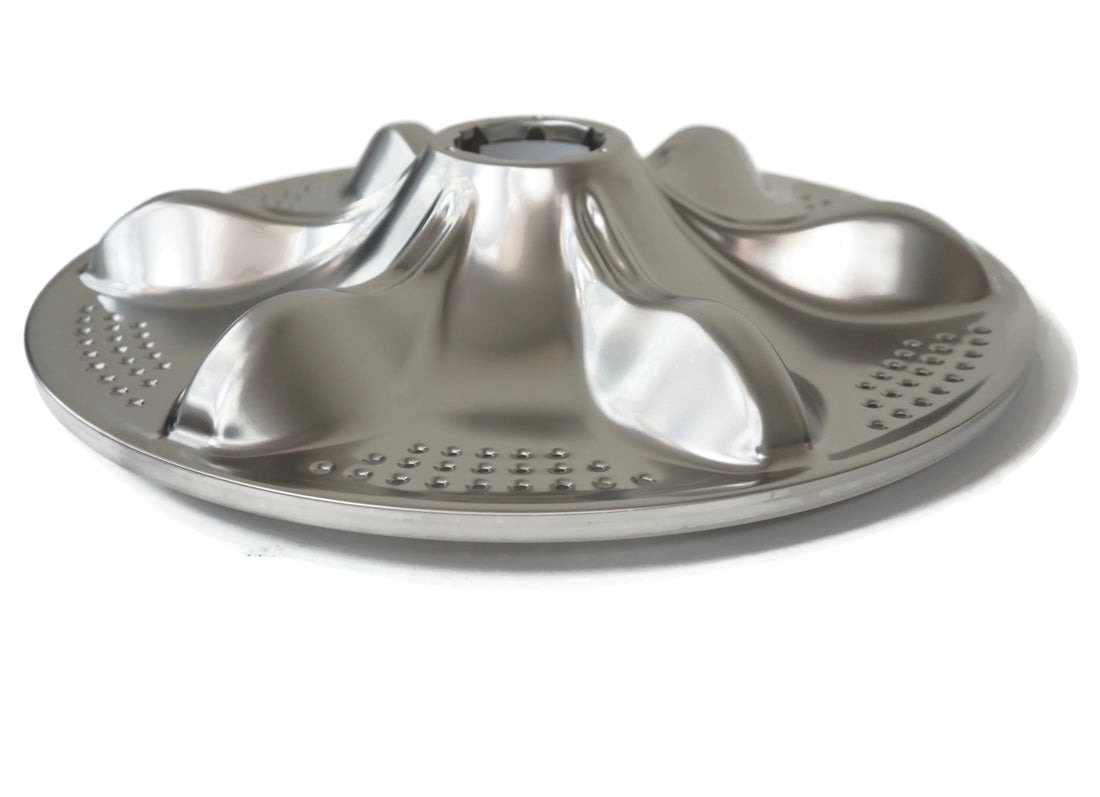

GE WH43X10027 Washer Pulsator Assembly aka Washplate

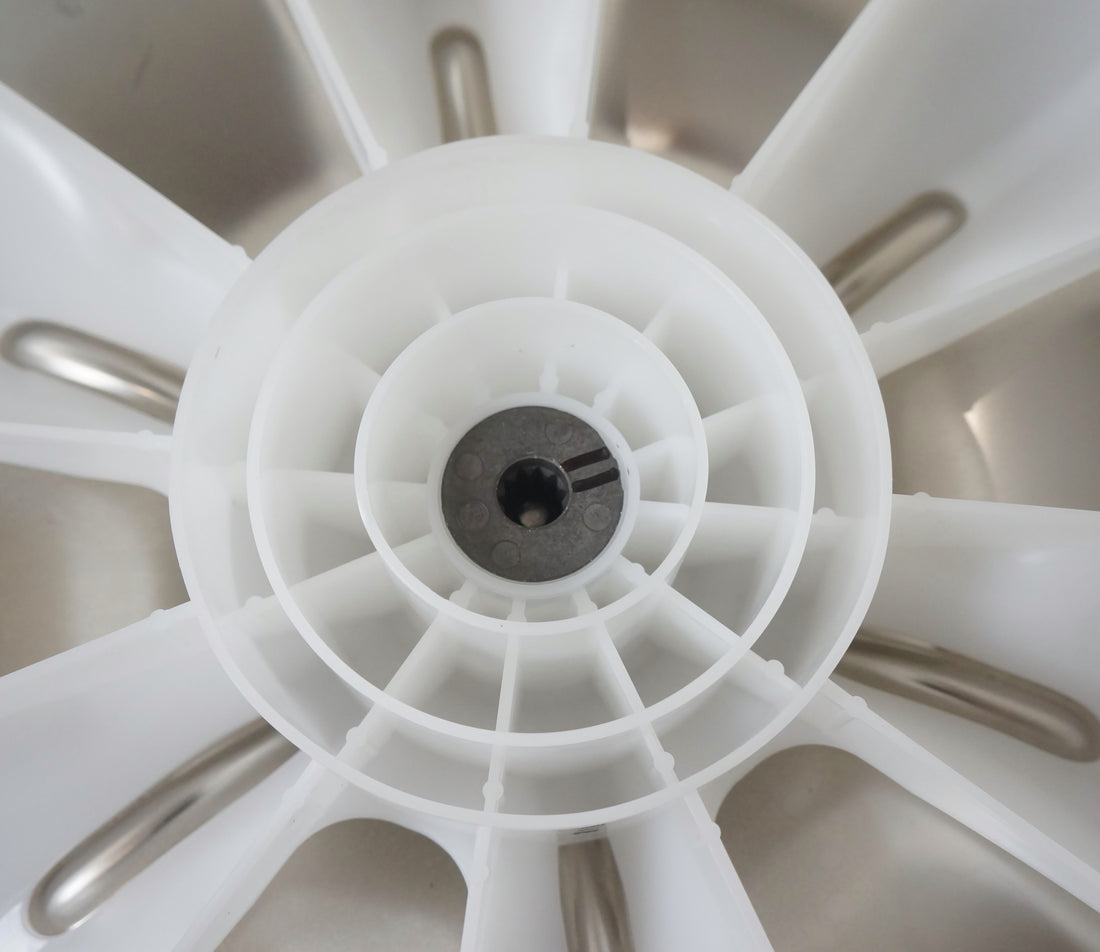

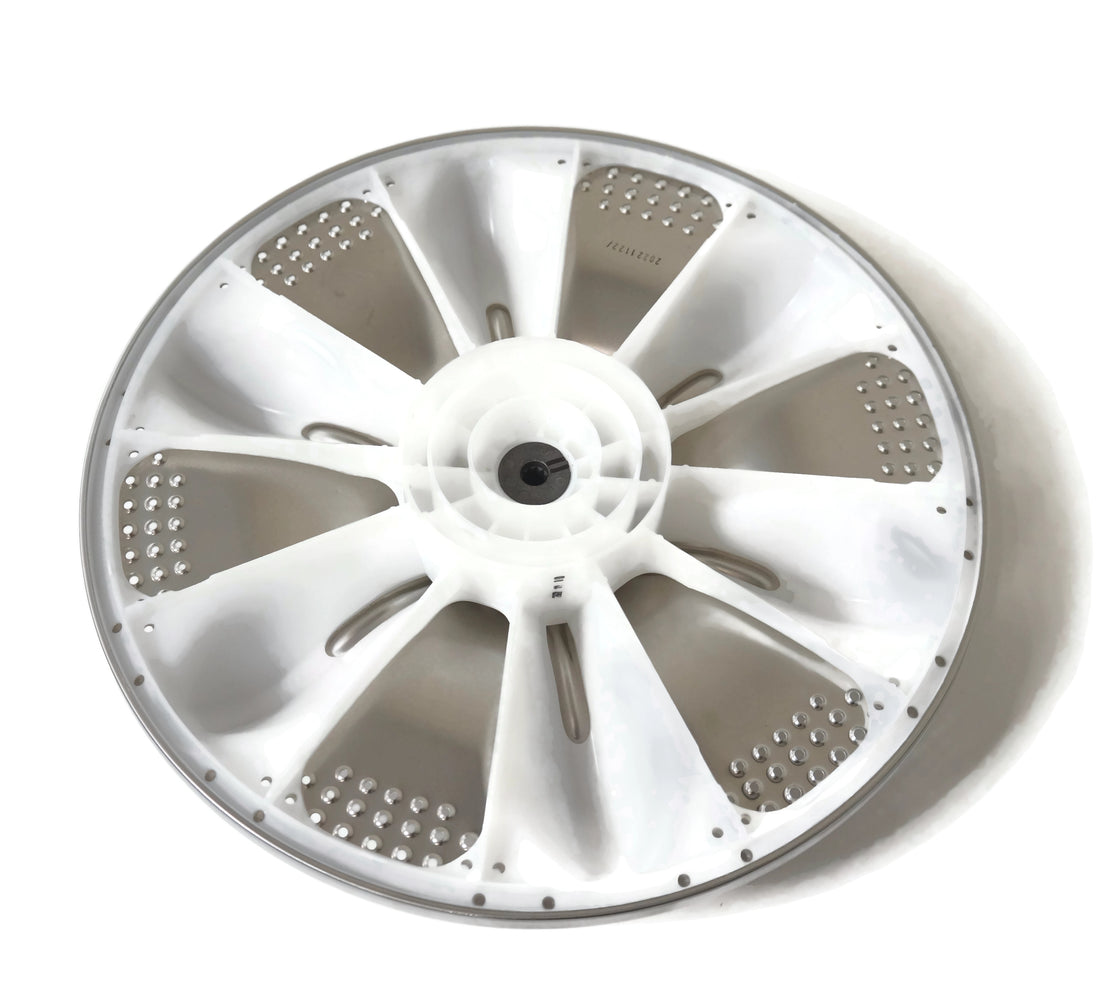

GE Harmony washer washplate. The mating hub spline inside (underneath) the washplate can become stripped over time causing the mounting bolt to back out during wash. Replacement requires 5 minutes if shaft spline is in good condition. Be sure to use the new bolt included with the washplate.


Cross references / Replaces the following part numbers:
AP3203285 , PS961143

Fits the following models (not all applicable models are listed):

WPGT9150H0MG , WPGT9150H0WW , WPGT9350C0PL , WPGT9350C0WW , WPGT9360C0PL , WPGT9360C0WW , WPGT9360E0PL , WPGT9360E0WW



Customers also search for:

WH43X10027 parts
WH43X10027 replacement

Questions?

Contact us
  • 5 stars: 13 (93%)
  • 4 stars: 1 (7%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Marc in NC (United States)
Pulsator Replacement

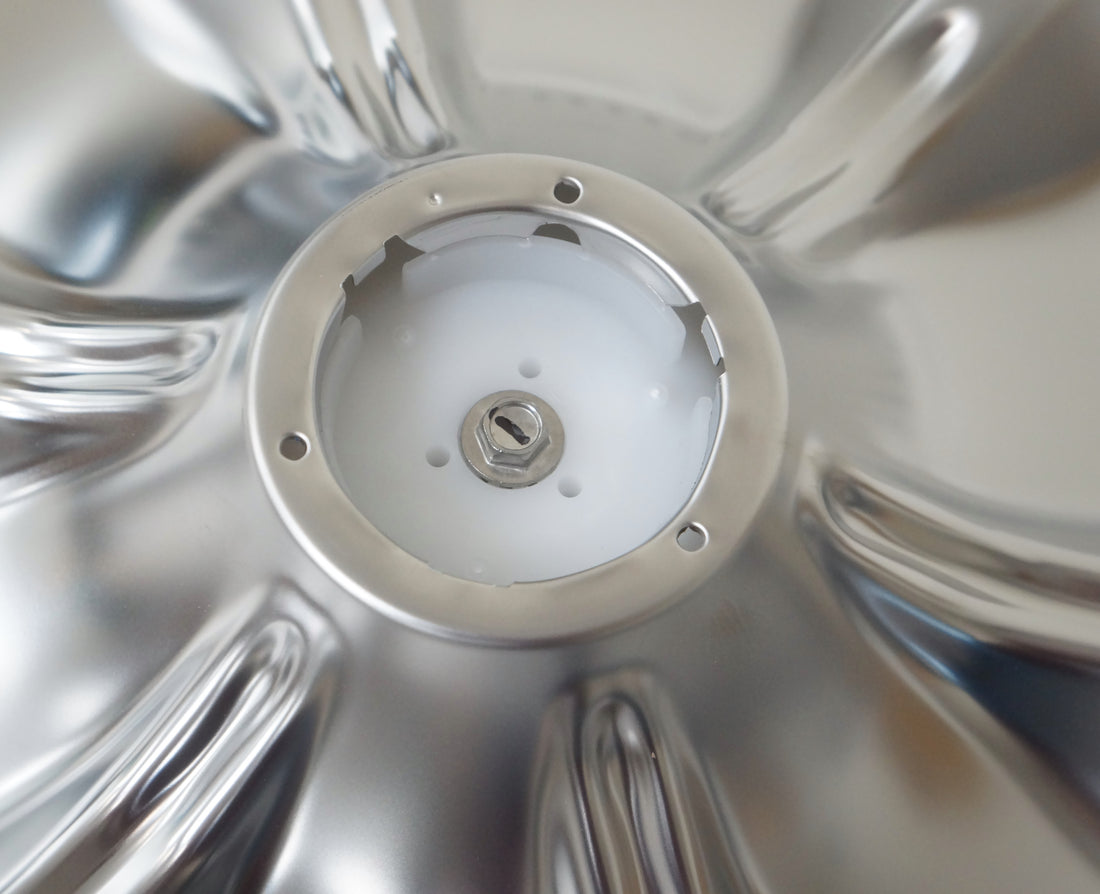

Virginia Service Supply was the only place I could find this pulsator and I received the part the next day, with standard shipping. The plastic splines on my old pulsator were worn smooth, so the pulsator was no longer moving to clean the clothes. Very easy part to replace. All you need is a flat blade screwdriver to remove the plastic cover over the bolt that attaches the pulsator to the motor shaft. The bolt can be removed with either a #2 Phillips screwdriver or 10mm socket and reassembly is a snap. Took a lot longer to clean the soap crud on the tub underneath the pulsator than it did to replace the pulsator. Had I not been able to find this part at Virginia Service Supply, I would have had to replace my washer.

R
Rodney Ohanesian (United States)
GE Washer Pulsator Plate Replacement

This part was an exact replacement for my worn out unit. The splines on the drive shaft were in good condition and the new part fit perfectly. The repair took less than 10 minutes and restored the machine back to normal operation. Virginia Service Supply was great to work with and I would highly recommend them.

J
Jeffrey James (United States)
Part installed and working great!

On time delivery and easy installation

H
Happy in Oklahoma (United States)
Big Help!

My appliance guy checked 120 dealers with no luck but I found what I needed at Virginia Service Supply, saved me from having to buy a new appliance.
Well done!

S
Susan Hart (United States)
Fast and efficient

Had I not found this part, I would probably need to purchase a new washing machine.

L
Leonard P
Clothes Washer Repair

Installed in less than a minute.

C
Charles
Cause of Failure

Mating hub spline inside Washer Pulsator Assembly can wear ( become stripped ) over time causing the mount bolt to back out ( Unscrew ) during wash. Replacement requires 5 minutes if shaft spline is in good condition, usable.

J
Joshua Gibbs
Good price on part. Fast shipment.

Part was easy to order and install. Washer working at 100% again. Thanks!

A
Anonymous
Replacement Part for Washing Machine

Our washer broke down in the midst of the COVID-19 crisis and we weren't sure how we could fix it. We looked online and found the part on Virginia Service Supply. It was easy to order and we received the part in two days. Installation was easy and we w

A
Anonymous
Washplate

Correct part found, ordered, shipped, arrived, installed, functioned.

L
L W
Pulsator replacement

Repair was easy. Part was better quality than the original one. Shipping was fast and price was excellent!

S
Steve Pierce
Repair parts

The right part was easy to find on line, easy to order and was the lowest price I could find . All around excellent. Thanks!

Q
Qwerty
Washer fix

Part good. Analysis bad.

M
M.F.
Washer Impeller

Remember to buy the cap. I didn't look at mine until I went to install it. Had to order the cap.
